PLENUM INSTALLATION

A supply air plenum is a sheet metal box that attaches to the outlet of a furnace, air handler, or A/C coil and is used as a central manifold for other ductwork or take-offs to connect to (see P. 162 & P. 164). Such a design allows creating a static pressure, which is necessary for the system of ductwork to hold in all elements of the system equal quantity of airflow.

Plenums are possible to divide into three categories conditionally:

  • Integral plenum (P. 161)
  • Two-piece plenum (P. 162)
  • Two-piece plenum with a canvas between them (P. 163)

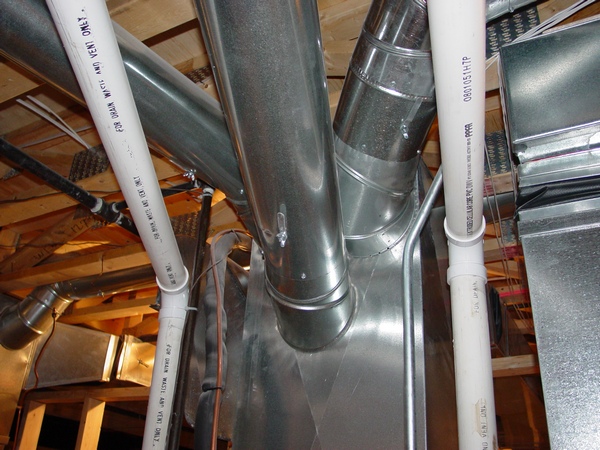

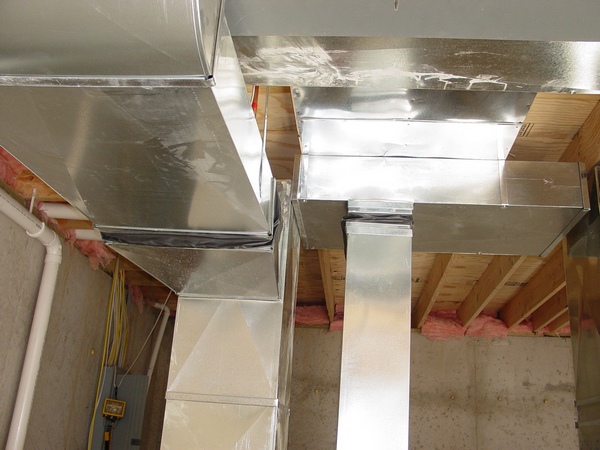

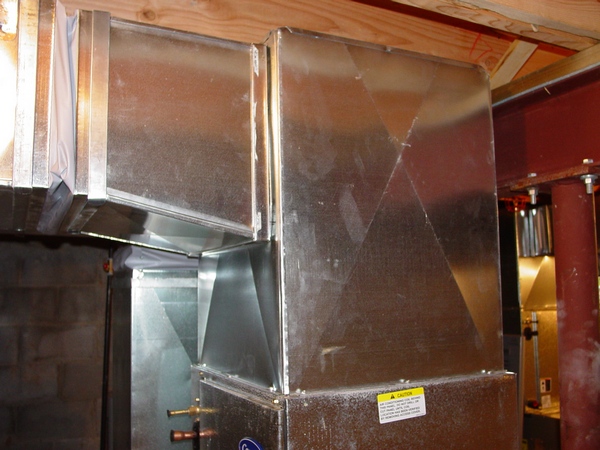

P. 161                                                              P. 162

1. Integral plenum

The integral plenum usually used in rather low basements, and it comprises a box with the ½” hem and a Top Cap (P. 161). The sizes of the box on ¼" - ½” exceed the sizes of a furnace flange or the same kind of flange on an air conditioning coil.

Upon arrival at the job-site a Top Cap usually is not attached to the plenum with the reason to allow you to fit it in place.

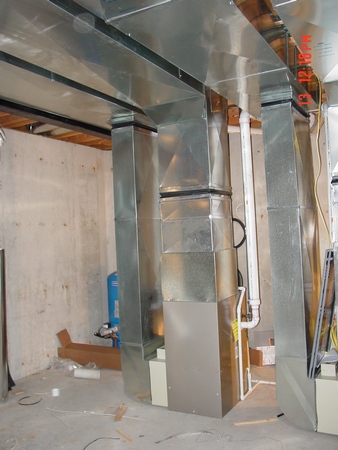

P. 163                                          P. 164

While measuring plenum's height, take into consideration that the plenum’s top must be 1” below the joists. That means that from your measured number, that was taken from the A/C coil (furnace), you should deduct...


This is one of the most popular chapters from my Ductwork Installation Guide e-book.

In general visitors of my website prefer purchase this e-book as a whole, but if some of them purchase one or two chapters from it separately this chapter is their first choice!


38. Plenum Installation* – the chapter covers all three types of plenums, gives an explanation how to put plenum together, put a top cap on, cut in a starting transition. After that chapter will explain on how to set up a furnace in relation to the I-beam.

The chapter has 48 pictures; 26 pages*. $2.50 (Instant Access).

Article:
How A Professional Designs A Heating or Cooling System.

On 04/29/2015 text of this chapter was significantly modified and improved. Seven pictures were added.
A link to the International Code added (11/05/2012).

I you decide to get an instant excess to this chapter click on the Buy Now button below.

Instant Access:

After you have purchased a paid page; PayPal is going to bring you back to my website. In order to see the paid page you have to click on the “Register” button, fill out the form, choose your own Username and Password and click on the “Register” button at the bottom of the form – congratulation, you are now on the page you have paid for!

Important:

After you have purchased any Paid page or Download page and PayPal brought you back to my website, the first thing that you should do is to save that page to your Favorites. Then if something goes wrong you always can come back to re-register yourself on my website again.

If you are still have any questions about this chapter contents ask them on this page.
